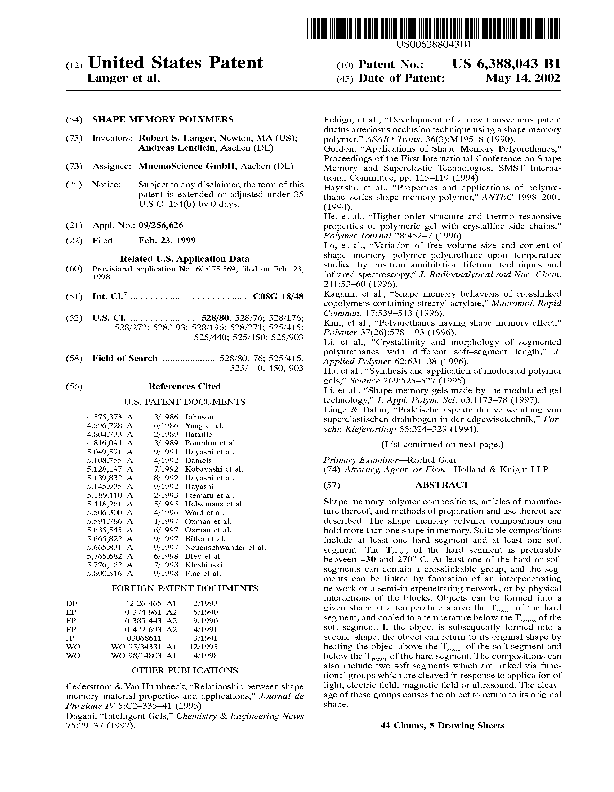

Patent 06388043 - Shape memory polymers > Summary

Patent No. US 06388043

Published on May 14, 2002

Application No. 09/256626

Filed on Feb 23, 1999

Priority Date -

Langer, Robert S. - Newton, MA (15)

Shape memory polymer compositions, articles of manufacture thereof, and methods of preparation and use thereof are described. The shape memory polymer compositions can hold more than one shape in memory. Suitable compositions include at least one hard segment and at least one soft segment. The Ttrans of the hard segment is preferably between 30 and 270 C. At least one of the hard or soft segments can contain a crosslinkable group, and the segments can be linked by formation of an interpenetrating network or a semi-interpenetrating network, or by physical interactions of the blocks. Objects can be formed into a given shape at a temperature above the Ttrans of the hard segment, and cooled to a temperature below the Ttrans of the soft segment. If the object is subsequently formed into a second shape, the object can return to its original shape by heating the object above the Ttrans of the soft segment and below the Ttrans of the hard segment. The compositions can also include two soft segments which are linked via functional groups which are cleaved in response to application of light, electric field, magnetic field or ultrasound. The cleavage of these groups causes the object to return to its original shape.
